Description

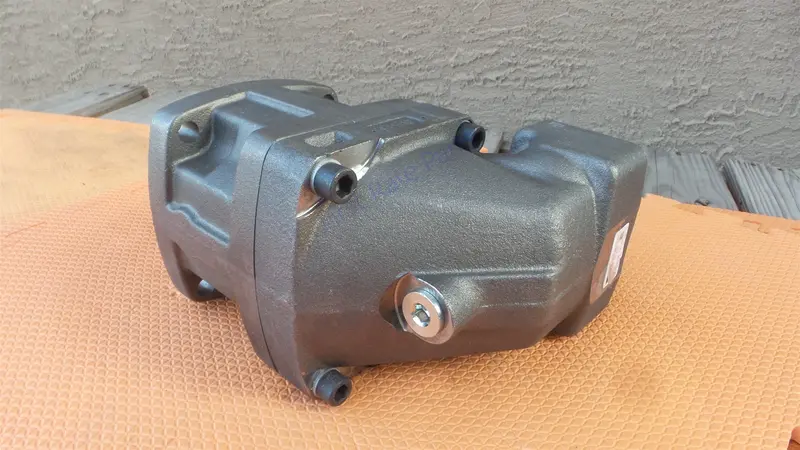

Parker 3723842 Bent Axis Piston Motor F12-080-MS-SV-T-000-0000-P0 Hydraulic OEM

LAST ONE!!!

IN STOCK, Ships immediately!!

This is the CHEAPEST price ANYWHERE on a genuine part.

This is new, never used or installed.

THIS IS A GENUINE OEM PARKER MOTOR!! THIS IS NOT A CHEAP AFTERMARKET OR USED PART THAT WILL NOT LAST AND WILL NEED REPLACED!! DON’T WASTE TIME, MONEY, AND HASSLE REPLACING IT AGAIN!!

Ships from the USA! Don’t wait weeks or months to receive a counterfeit part from overseas!

Ships in generic bulk packaging.

No additional parts or components are included beyond the items as shown in pics.

Get the best price ANYWHERE HERE!!!

Get your genuine high end part for much cheaper here.  Don’t worry about old used parts breaking, this is brand new.  Don’t settle for used parts this is brand new.

This part sells for over $6285

All returns must be returned in the original as received uninstalled condition with all accessories, components, and packaging. Items must be well packaged and insured. Buyers are responsible to ensure that items are received back to us in the original undamaged condition. Buyer is responsible for all shipping costs. Buyer must retain all packaging for an item damaged in shipment. A shipping claim cannot be processed without original packaging and hence the item cannot be returned or refunded.

Hydraulic bent-axis (fixed displacement) motor with large frame + SAE C-C 1-1/2″ keyed shaft + top ports – Parker Hannifin (F12 series) – 80cm3/rev. / 4.8in3/rev. displacement – 450bar / 6527psi max. continuous operating pressure max. – 107.8gallons/min (GPM) max. continuous input flow / 408L/min (LPM) max. continuous input flow flow – 5100rpm max. continuous – FPM seal – 2 x 1″ (ISO 6162) SAE flange ports “A & B” + 1 x 7/8″-14 UN O-Ring Boss (ORB) threaded port “C” + 1 x 7/8″-14 UN O-Ring Boss (ORB) threaded port “D” – SAE C 4-bolt mounting flange – rated for -40°F…+239°F / -40°C…+115°C – prepared for speed sensr. – equivalent to 3786339 / F12080MSSVT0000000P0

Fits: (may fit various models, you are responsible to verify this is the correct part number for your application)

Primary brandParker HannifinMain functionHydraulic motorProduct series / family nameMotors (hydraulic) > Bent axis motors > Fixed displacementSub-range nameF12 seriesFunctionsHydraulic bent-axis (fixed displacement) motorDesignlarge frame
SAE C-C 1-1/2″ keyed shaft
top ports
prepared for speed sensr.
Rated fluid contamination (ISO) 20/18/13
Fluid optimum viscosity 15-30cSt (rated for 8-1000cSt)Flow107.8gallons/min (GPM) max. continuous input flow
408L/min (LPM) max. continuous input flowPressure450bar / 6527psi max. continuous operating pressureRotational speed50rpm min.
5100rpm max. continuousTorque127.6Nm / 94.2lb/ft theoretical torque at 100barMoment of inertia8400kg.mm2 (0.0084kg.m2)Connection type2 x 1″ (ISO 6162) SAE flange ports “A & B”
1 x 7/8″-14 UN O-Ring Boss (ORB) threaded port “C”
1 x 7/8″-14 UN O-Ring Boss (ORB) threaded port “D”Mounting modeSAE C 4-bolt mounting flangeMaterialFPM sealAmbient air temperature for operation-40°F…+239°F / -40°C…+115 °COrder code / Manufacturer SKUF12-080-MS-SV-T-000-0000-P0
3786339Manufacturer product statusCommercializedEquivalent to3786339
F12080MSSVT0000000P0Displacement volume80cm3/rev. max. displacement
4.8in3/rev. max. displacementBenefitsBent-axis fixed displacement motor/pump
It can be used in numerous applications in both open and closed loop circuits
Max intermittent pressure up to 500bar / 7251psi and continuous operating pressure up to 450bar / 6526psi
The 7 or 9 piston design provides high start-up torque and smooth motor operation
ISO / Cartridge / SAW and SAE versions
